ESP8266 Robot !
MRduino Wireless

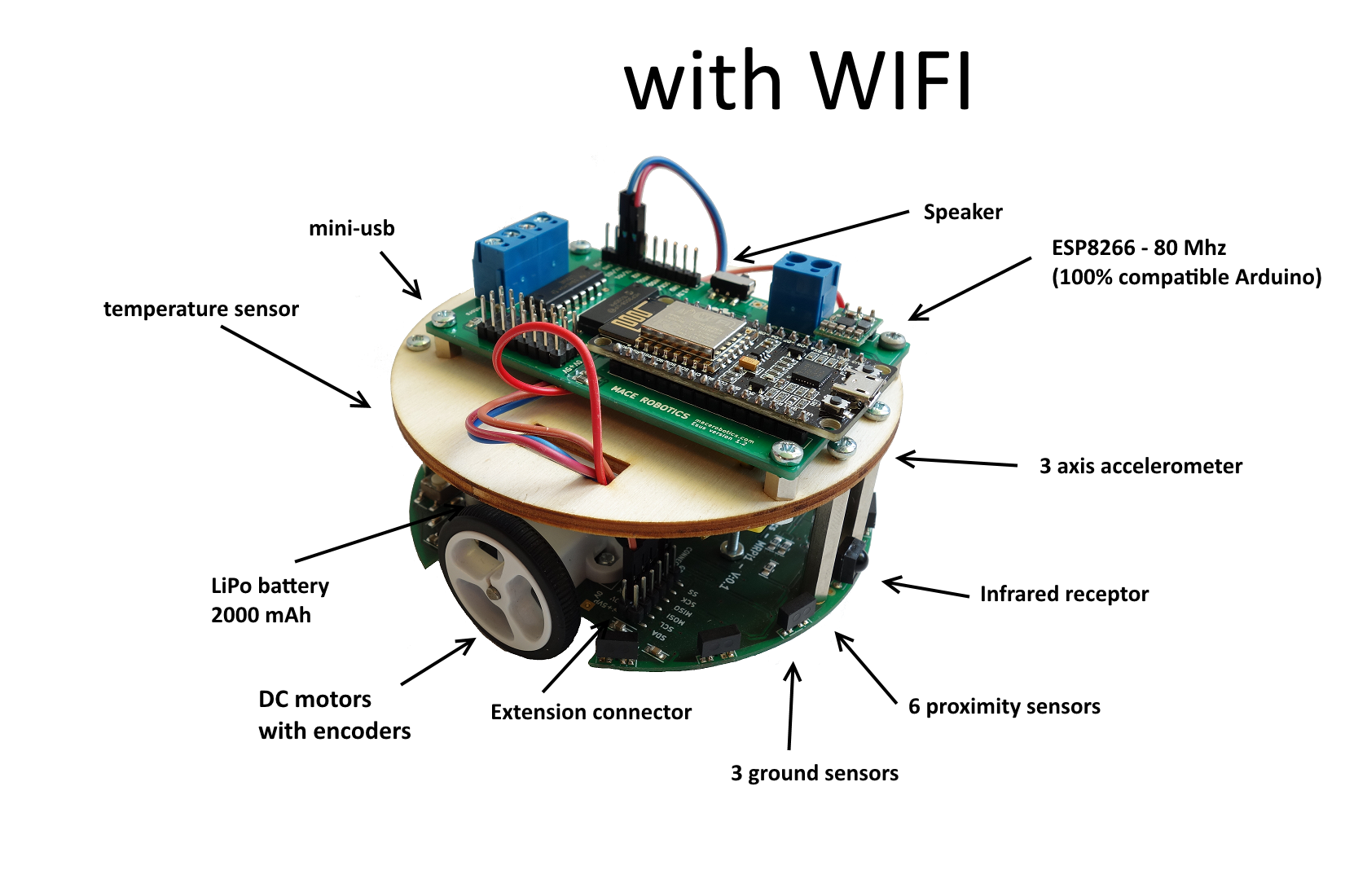

MRduino Wireless is a small mobile robot based on an Esus card (ESP8266 100% compatible Arduino). It is very easy to program and customizable. It includes numerous sensors, 3-axis accelerometer, temperature, proximities and light sensors. In addition, it is equipped with a loudspeaker. Its small size allows you to easily program it on a desktop
How to program the MRduino Wireless robot?
The robot MRduino Wireless can be programmed :
- Arduino IDE,
- or Blockly
Arduino IDE :
Specifications:
| CPU | ESP8266 80 Mhz |
|---|---|
| MCU | STM32F407 168 Mhz (ARM Cortex M4 – 512KB) with FPU |
| Motors | 2 DC motors with encoders |
| Mini-usb |
|
| Audio | 1 speaker |
| Communication | Wifi + infrared recepter 38 Khz |
| Battery |
|
| Leds |
|
| Extension |
|
| Switch | 1 switch configurable |
| Sensors |
|
| Size | 10 cm diameter, 7 cm height |
| Weight | 200 g |
How I charge the robot battery ?
You need just a USB cable.
Software:
- Arduino IDE
Licences :
- Software: MIT Licence
- Hardware: CC-BY-SA
